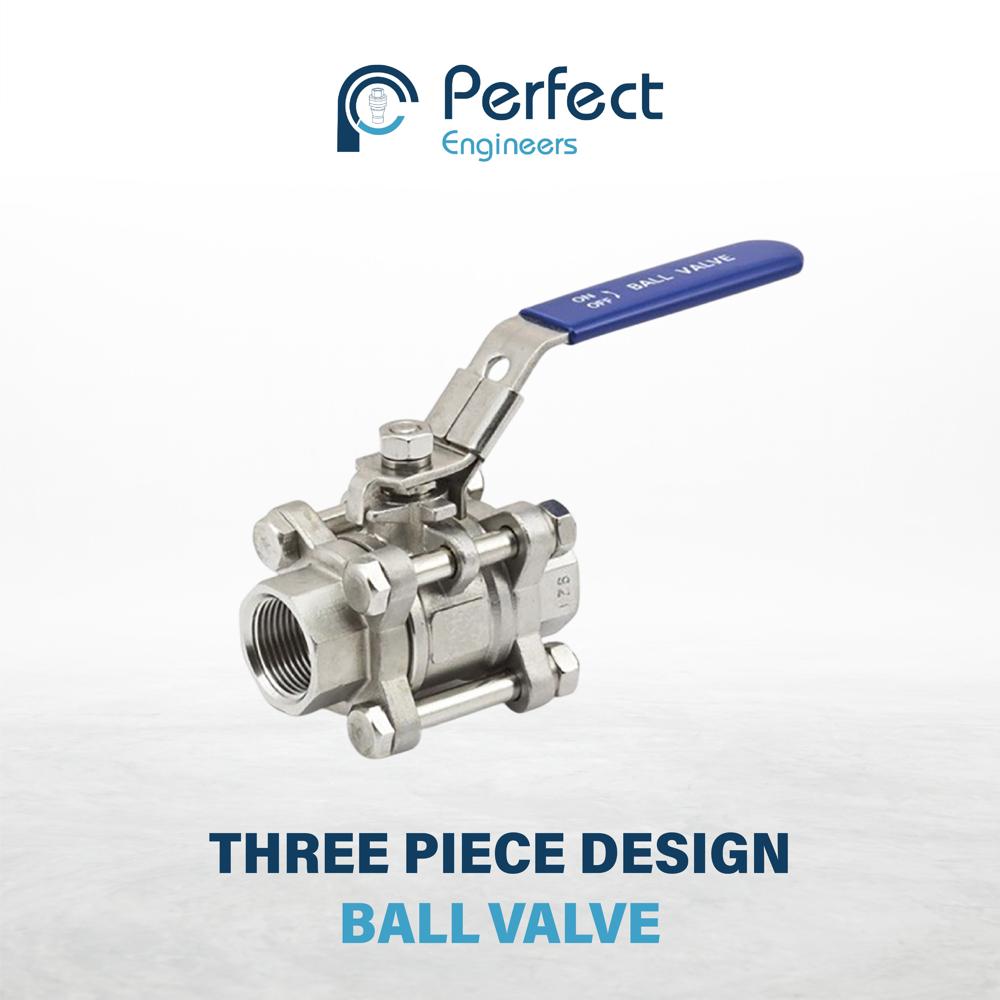

Three Piece design Ball Valves About
Three Piece Design Ball Valves from Perfect Engineers are precision-engineered quarter-turn valves designed for reliable on/off flow control of liquids, gases, and other compatible media in industrial piping and process systems. The three-piece body construction allows easy disassembly of the valve from the pipeline for inspection, cleaning, servicing, and replacement of internal components, making these valves ideal for applications requiring regular maintenance.
Manufactured from high-quality Stainless Steel, Carbon Steel, Brass, and other suitable materials, these ball valves provide excellent mechanical strength, corrosion resistance, durability, and long service life. The precision-machined ball and seats provide smooth 90 operation, low pressure drop, and reliable shut-off performance.
Key Features:
- Robust three-piece body construction
- Easy maintenance and servicing
- 90 quarter-turn operation
- Reliable and leak-resistant shut-off
- Low pressure drop
- Excellent corrosion and wear resistance
- Manual, pneumatic, and electric actuation options
- Available in threaded, socket weld, and other configurations
Applications:
- Oil & gas industries
- Chemical and petrochemical plants
- Water treatment
- Food & beverage processing
- Pharmaceutical industries
- HVAC and industrial utilities
- Power plants and process equipment
Perfect Engineers supplies high-quality Three Piece Design Ball Valves engineered for easy maintenance, dependable flow control, long service life, and consistent performance across diverse industrial applications.
Engineered for VersatilityOur Three Piece Ball Valves come in sizes from 1/4 inch to 4 inch and support a range of end connections, including screwed, socket weld, butt weld, and flanged. The investment-cast body allows for both durability and compatibility with a wide range of media such as water, oil, gas, and chemicals. The available seat material options provide optimal sealing for various temperature and pressure requirements up to 1000 PSI.
Ease of Maintenance and SafetyDesigned with a three-piece structure, these valves enable easy on-site maintenance without complete line disassembly. The blowout-proof stem and anti-static device significantly enhance operational safety. Insulated handles and a locking mechanism provide protection from accidental operation, ensuring reliability especially in hazardous environments.
Industry Standard ComplianceOur valves are engineered to adhere to leading design and testing standards, including BS 5351, API 6D, ISO 17292, and API 598. They are also constructed to ASME B16.10 face-to-face standards. This ensures global compatibility, trustworthy performance, and confidence in demanding industrial settings.
FAQ's of Three Piece design Ball Valves:
Q: How does the three-piece design benefit valve maintenance and installation?
A: The three-piece body structure allows maintenance or seat replacement without removing the valve from the pipeline. This makes servicing more convenient, reduces downtime, and helps minimize maintenance costs in the long term.
Q: What mounting options are available for automation on these ball valves?
A: These ball valves feature an ISO 5211 direct mounting pad, which enables easy and secure mounting of actuators for automated control, in addition to manual operation.
Q: When should I choose different seat materials like PTFE, Teflon, Viton, or reinforced PTFE?
A: Seat material should be chosen based on the media, temperature, and chemical compatibility. PTFE and Teflon are suitable for most general purposes; Viton is ideal for aggressive chemicals and higher temperatures; reinforced PTFE is recommended for more rigorous applications requiring enhanced durability.
Q: Where can these valves be applied?
A: These valves are suited for use in chemical, petrochemical, oil & gas, food processing, water treatment, and power industries, handling media such as water, oil, gas, and a wide array of chemicals.
Q: What process is followed for valve testing and quality assurance?
A: Each valve undergoes strict hydrostatic and pneumatic testing as per API 598 standards to ensure leak-proof operation and robust performance before shipment.
Q: What are the key safety features included in this ball valve design?
A: The valves are equipped with a blowout-proof stem, anti-static device, insulated grip handle, and a built-in locking device to prevent unintended operation and improve safety in industrial environments.
Q: How does the valve ensure leak-proof performance under high pressure?
A: Leak-proof body joints, precision machining, and carefully selected seat materials contribute to excellent sealing, enabling dependable operation at pressures up to 1000 PSI (69 Bar).
