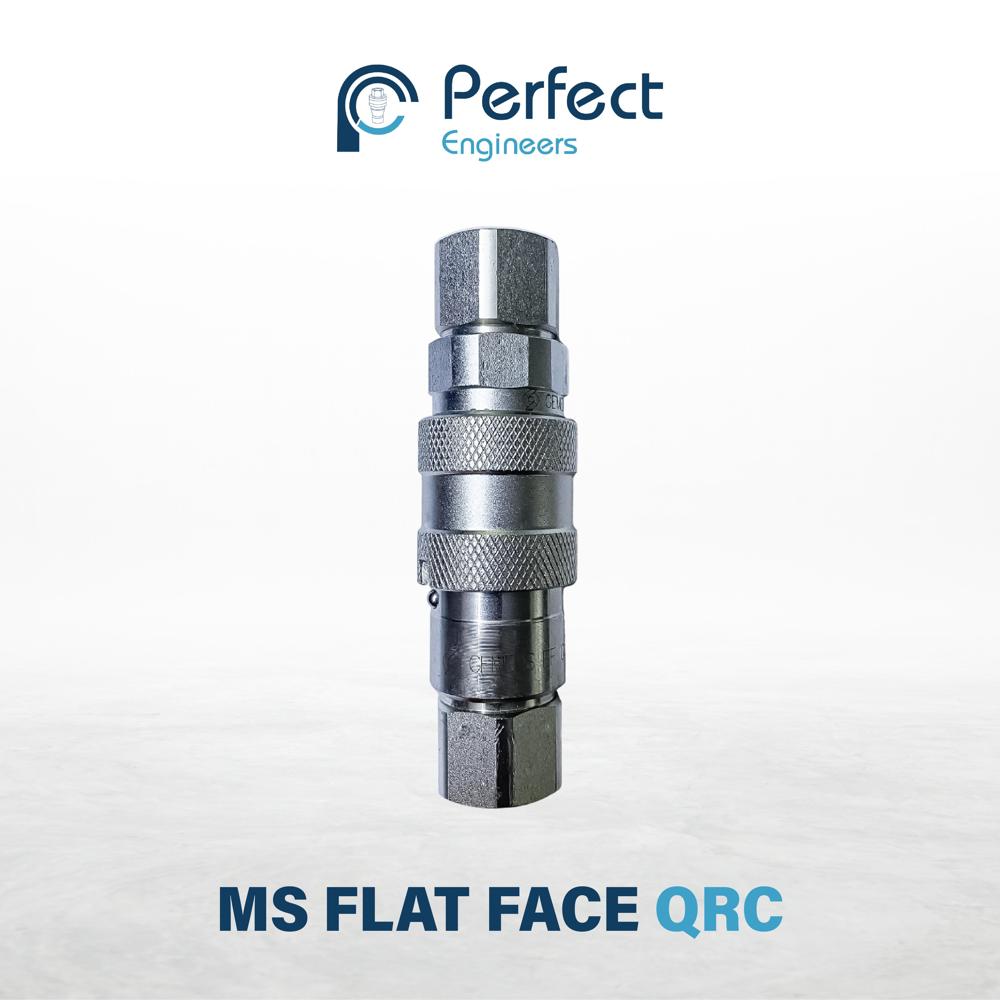

Send InquiryMS Flat Face QRC
Price 150.0 INR/ Piece
MOQ : 1 Piece
MS Flat Face QRC Specification
- Sealing
- Nitrile Rubber (NBR), Viton (Optional)
- Thread
- BSP, NPT, Metric (Custom Available)
- Head Code
- Hexagonal
- Bore
- Standard/Customizable
- Connection
- Female Coupler, Threaded
- Material
- Mild Steel (MS)
- Structure
- Flat Face Quick Release Coupling
- Standard
- ISO 16028 / Company Standard
- Inner Diameter
- Custom sizes available - Typically 6 mm to 50 mm
- Outer Diameter
- Custom sizes available
- Application
- Hydraulic and pneumatic system connections
- Surface Treatment
- Zinc plated / Chromium plated for corrosion resistance
- Technique
- Precision Machined, Forged
- Shape
- Cylindrical Flat Face
- Locking Mechanism
- Push-to-Connect, Locking Balls
- Size Range
- 1/4" to 2" Available
- Release Type
- Single Hand Operable
- Flow Rate
- 10 LPM to 250 LPM (Depending on size)
- End Connection
- Female Threaded / Male Threaded / Hose Insert
- Interchangeability
- Interchangeable with ISO 16028 standard couplers
- Leakage
- Zero leakage design
- Finish
- Smooth, Anti-Rust Finish
- Temperature Range
- -25C to +120C
- Product Life
- High cycle durability
- Working Pressure
- Up to 450 Bar
MS Flat Face QRC About
Robust Engineering and Construction
Manufactured from precision-machined and forged mild steel, this quick release coupling boasts a flat face, anti-rust finish to withstand corrosion. With custom and standard dimensions, including a hexagonal head and smooth surface treatment options like zinc or chromium plating, it fits fluid power systems operating in harsh conditions.
Versatile Performance and Application
Operable over a wide temperature range (-25C to +120C) and working pressures up to 450 Bar, the MS Flat Face QRC seamlessly integrates with ISO 16028 systems. Available in female and male threaded or hose insert end connections, it supports hydraulic and pneumatic setups with flow rates up to 250 LPM, adapting to varied industrial needs.
FAQ's of MS Flat Face QRC:
Q: How does the push-to-connect locking mechanism of the MS Flat Face QRC operate?
A: The push-to-connect locking mechanism allows users to effortlessly engage or disengage the coupler using one hand. Locking balls inside the structure securely hold the connection in place, ensuring a safe and leak-free seal suitable for high-pressure environments.Q: What are the advantages of choosing a flat face quick release coupling with zero leakage design?
A: A flat face design prevents fluid loss and contamination during connection or disconnection. The zero leakage feature ensures optimal system performance, prolongs equipment lifespan, and reduces maintenance and environmental risks.Q: When should you select Viton seals instead of Nitrile Rubber (NBR) for this coupling?
A: Viton seals are recommended when the application requires enhanced chemical or temperature resistance, particularly in environments where temperatures exceed standard ranges or aggressive fluids are present. NBR is suitable for standard hydraulic and pneumatic systems.Q: Where are these couplers commonly used?
A: These couplers are widely utilized in hydraulic and pneumatic systems found in industrial machinery, mobile equipment, and manufacturing plants-where rapid, reliable, and spill-proof hose connections are essential.Q: What is the process for customizing the size and thread type of the MS Flat Face QRC?
A: To customize the coupling, specify required dimensions (inner and outer diameter), thread type (BSP, NPT, Metric), and end connection. The manufacturer will precision-machine the product to your specifications, ensuring compatibility with your system.Q: What are the primary benefits of the smooth, anti-rust finish?
A: The anti-rust finish, achieved through zinc or chromium plating, extends the product's lifespan by protecting the coupling from corrosion and wear, which is especially valuable in harsh operating environments.
