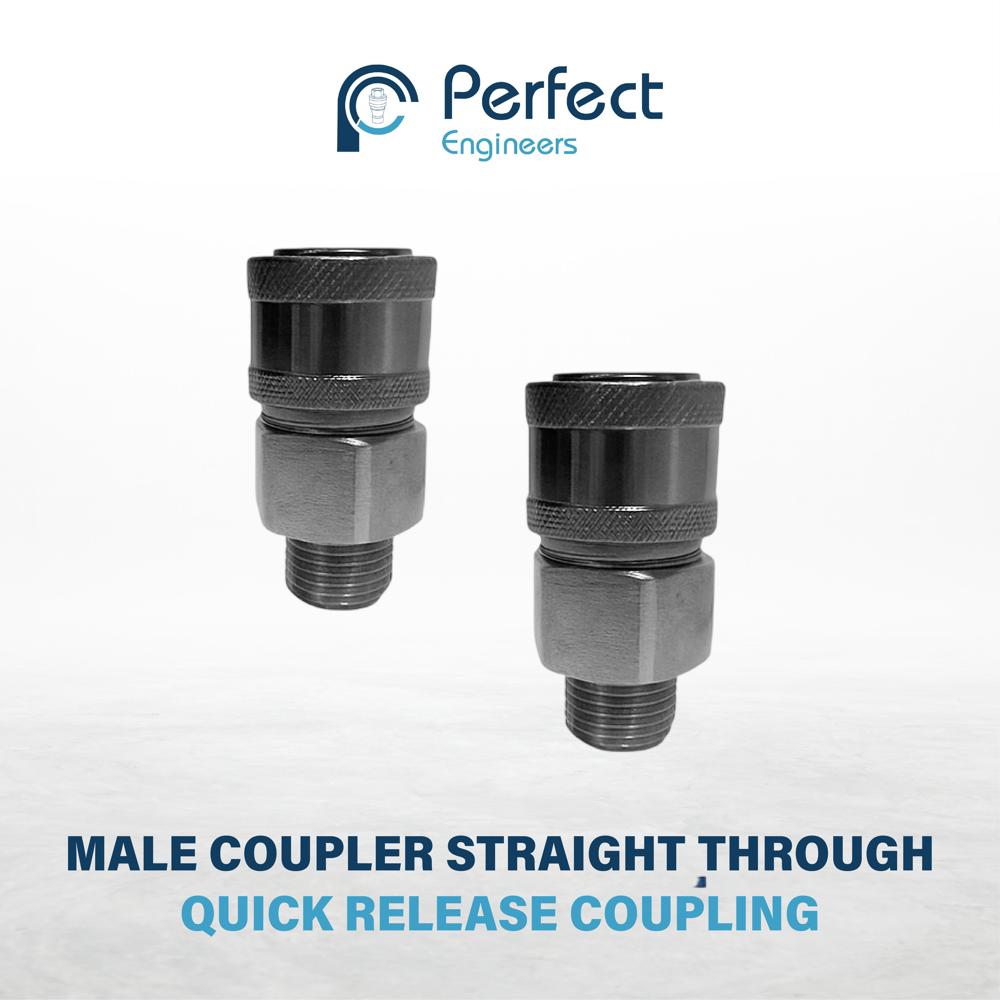

Male Coupler Straight Through Quick Release Coupling

Name: Male Coupler Straight Through Quick Release Coupling
Brand: PERFECT ENGINEERS
Price: 150.0 INR
Availability: InStock

Price 150.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Male Coupler Straight Through Quick Release Coupling Specification

Torque
High-torque tolerance, specific value per model

Thread
Standard BSP/NPT male thread

Sealing
Precision O-ring sealing

Head Code
Hexagonal for easy wrench grip

Connection
Male threaded connection

Max. Speed
Suitable for high-speed pneumatic operation

Bore
Full bore design for maximum flow

Material
Carbon steel with surface plating / Stainless steel (optional)

Structure
Two-piece quick connect body and release sleeve

Standard
Manufactured to ISO 7241-1 Series B

Inner Diameter
6 mm to 25 mm (varies per model)

Outer Diameter
As per size specification from 16 mm upwards

Application
Industrial pneumatic and hydraulic systems, fluid transfer lines, compressed air tools

Surface Treatment
Nickel plated for corrosion resistance

Technique
Precision machining

Shape
Straight

Leakage
Zero leakage under rated pressure

Compatibility
Compatible with standard female couplers of same specification

Weight
Lightweight, varies with size

End Connection Type
Male BSP/NPT threaded end

Locking Mechanism
Ball locking with single hand push-to-connect operation

Maintenance
Easy disassembly for cleaning and maintenance

Temperature Range
-20C to +120C

Colour
Silver (standard finish), custom on request

Pressure Rating
Up to 300 bar (depending on model and material)

Male Coupler Straight Through Quick Release Coupling About

Male Coupler Straight Through Quick Release Coupling from Perfect Engineers is a precision-engineered coupling designed for fast, secure, and reliable connection of hoses, pipes, and equipment in hydraulic, pneumatic, and industrial fluid transfer systems. Its straight-through design provides a smooth flow path with minimal restriction, helping reduce pressure loss and maintain efficient fluid transfer. The male coupler is designed to connect with compatible female sockets, while the quick release mechanism allows rapid connection and disconnection during installation, maintenance, and equipment changeover.

Manufactured from high-quality Stainless Steel, Brass, Carbon Steel, and other suitable materials, these couplings offer excellent strength, corrosion resistance, durability, and reliable sealing performance.

Key Features:

Male coupler configuration
Straight-through flow design
Quick connection and disconnection
Low pressure drop
Secure and leak-resistant sealing
Robust and durable construction
Multiple sizes, materials, and thread options
Custom configurations available

Applications:

Hydraulic machinery
Pneumatic systems
Industrial fluid transfer
Water and cooling systems
Oil & gas and process lines
Manufacturing and automation equipment
General engineering and maintenance

Effortless Connection and Secure Performance

This quick release coupling features a user-friendly ball locking mechanism, allowing single-handed push-to-connect functionality. Designed for quick, reliable connections and disconnections, it streamlines operations and minimizes downtime in fluid transfer and pneumatic tool applications.

Engineered for Demanding Industrial Environments

With pressure ratings up to 300 bar and a temperature range of -20C to +120C, this coupler is suitable for hydraulic, pneumatic, and compressed air systems. The full bore design ensures maximum flow, while high-torque tolerance and nickel-plated surfaces provide resilience and longevity.

Versatility and User-Oriented Maintenance

Compatible with all standard female couplers of the same specification, this product is easy to install and remove, thanks to its hexagonal head and threaded connection. Maintenance is hassle-free, with simple disassembly for cleaning, ensuring sustained zero-leakage performance.

FAQ's of Male Coupler Straight Through Quick Release Coupling:

Q: How is the Male Coupler Straight Through Quick Release Coupling installed?

A: Installation involves threading the male end (BSP/NPT) into the appropriate port or fitting. The hexagonal head allows easy tightening with a standard wrench, ensuring a secure and leak-free connection.

Q: What applications are suitable for this coupling?

A: This coupling is ideal for industrial pneumatic and hydraulic systems, fluid transfer lines, and compressed air tools. Its robust construction and high-pressure tolerance make it applicable in sectors like manufacturing, maintenance, and heavy equipment operations.

Q: When should the coupler be disassembled for maintenance?

A: Regular inspection and maintenance are recommended, especially in high-usage environments. Disassembly is simple and should be performed when there's any sign of decreased flow or potential contamination to ensure optimal performance.

Q: Where can this coupling be used in terms of environmental conditions?

A: With a temperature range of -20C to +120C and excellent corrosion resistance through nickel plating, the coupling can be used both indoors and outdoors, even in demanding industrial settings.

Q: What are the benefits of the full bore design?

A: The full bore design maximizes fluid or air flow, reducing pressure loss across the coupling and improving system efficiency. This feature supports high-speed pneumatic operations and demanding hydraulic applications.

Q: How does the ball locking mechanism enhance usage?

A: The precision ball locking system allows for single-handed push-to-connect operation, facilitating easy and quick connection or disconnection while ensuring stable locking and zero leakage during use.

Q: What materials are available, and how do they impact durability?

A: The coupler is manufactured from carbon steel with nickel plating for corrosion resistance or optional stainless steel for even greater durability. Both options offer longevity and robust performance under challenging conditions.
