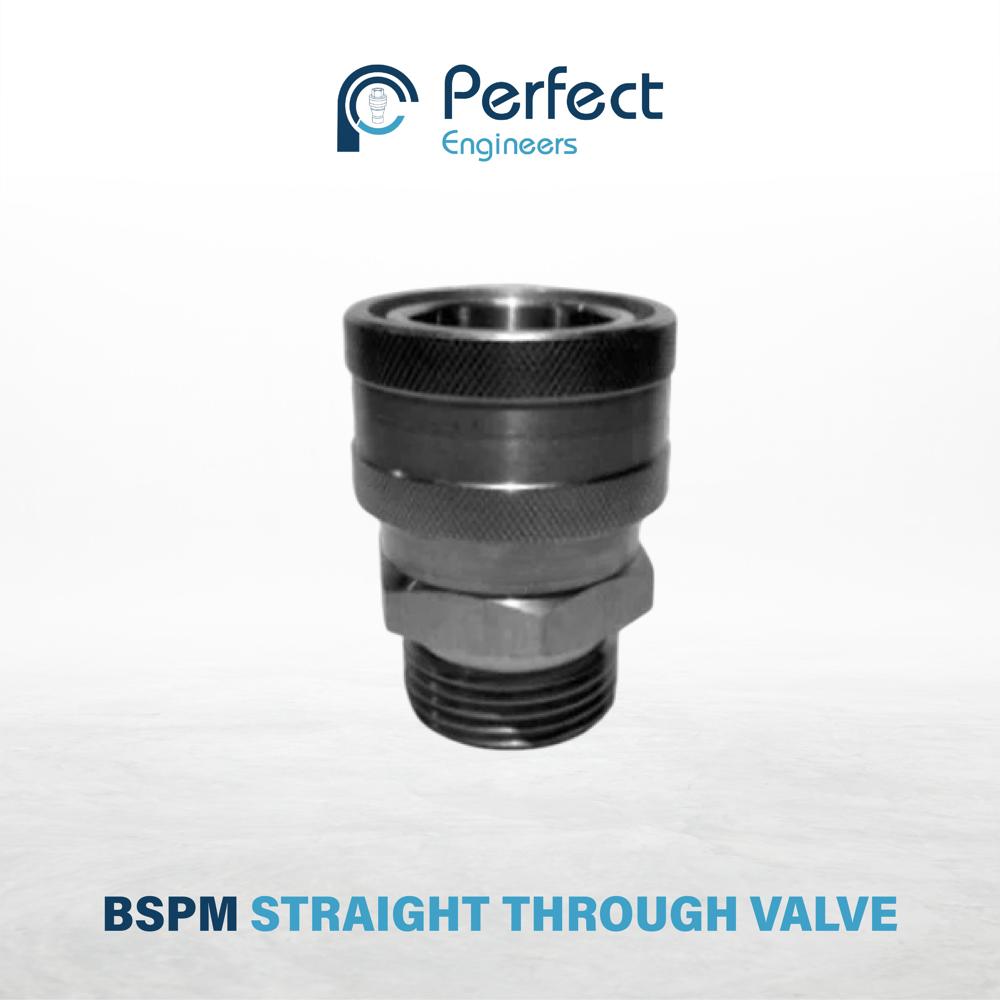

BSPM Straight Through Valve

Name: BSPM Straight Through Valve
Brand: PERFECT ENGINEERS
Price: 190.0 INR
Availability: InStock

Price 190.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

BSPM Straight Through Valve Specification

Head Code
Hexagon

Bore
Full Bore

Connection
Male BSP Threaded

Thread
BSPM (British Standard Pipe Male)

Torque
Depends on installation, usually 30-100 Nm

Sealing
Metal to Metal

Max. Speed
N/A (not speed dependent)

Material
Steel / Stainless Steel / Brass

Structure
Straight Through Coupling Valve

Standard
Complies with ISO and DIN standards

Inner Diameter
Customizable (typically 1/4 to 2)

Outer Diameter
Based on connection size, typically 19mm-60mm

Application
Hydraulic and pneumatic systems, allowing for direct fluid flow without restrictions

Surface Treatment
Nickel-plated / Zinc-plated for corrosion resistance

Technique
Precision Machined

Shape
Straight

Packing
Individual polybag or as required

Interchangeability
Compatible with major brands

Usage
Quick connect/disconnect in fluid lines

Leakage
Zero leakage at rated pressure

Temperature Range
-20C to 120C

Pressure Rating
Up to 350 Bar

Finish
Polished / Matte

Weight
Depends on size, approx. 150-600g per piece

BSPM Straight Through Valve About

BSPM Straight Through Valve

The BSPM Straight Through Valve from Perfect Engineers is a precision-engineered valve designed for reliable flow control in hydraulic, pneumatic, and industrial fluid handling systems. Featuring a BSP Male (BSPM) threaded connection, the valve provides a secure and convenient connection with compatible female threaded components. Its straight-through flow path helps maintain efficient media transfer with minimal flow restriction.

Manufactured using high-quality materials such as Stainless Steel, Brass, Carbon Steel, and other application-specific alloys, these valves offer excellent strength, durability, corrosion resistance, and reliable sealing performance. The compact design makes them suitable for installations where space and easy maintenance are important considerations.

Key Features:

BSP Male threaded connection
Straight-through flow design
Efficient flow with low restriction
Secure and leak-resistant connection
Robust and durable construction
Excellent corrosion resistance
Available in multiple sizes and material options
Suitable for customized industrial requirements

Applications:

Hydraulic systems
Pneumatic equipment
Industrial machinery
Water and fluid transfer
Oil and process lines
Manufacturing and automation systems
General engineering applications

Perfect Engineers supplies reliable BSPM Straight Through Valves designed for consistent flow control, easy installation, long service life, and dependable performance across diverse industrial applications.

Unrestricted Flow for Hydraulic and Pneumatic Applications

The BSPM Straight Through Valve provides a full-bore design, allowing fluids to pass directly without restrictions. This ensures high efficiency and minimal pressure drop in both hydraulic and pneumatic setups, making it an optimal choice for demanding environments where reliability and performance are vital.

Built for Durability and Corrosion Resistance

Crafted from robust metals like stainless steel, steel, or brass, and polished or matte finished with corrosion-resistant nickel or zinc plating, the valve guarantees long service life even in harsh conditions. Its precision machining and strict adherence to ISO and DIN standards further enhance its durability and compatibility.

FAQ's of BSPM Straight Through Valve:

Q: How does the BSPM Straight Through Valve ensure zero leakage during operation?

A: The valve utilizes precision-machined metal-to-metal sealing and rugged construction, thoroughly tested to withstand rated pressures up to 350 Bar. This design eliminates leakage, ensuring tight and reliable fluid control even in high-pressure conditions.

Q: What are the main benefits of using a straight-through valve in fluid lines?

A: A straight-through valve supports direct, unobstructed fluid movement, optimizing flow rates and reducing pressure loss. This makes it ideal for hydraulic and pneumatic systems requiring efficient, quick connect and disconnect capabilities without flow restrictions.

Q: When should I choose a nickel-plated or zinc-plated finish for my valve?

A: Nickel-plated valves are best for environments requiring enhanced corrosion resistance and a more resilient finish, while zinc-plated options provide solid protection against environmental effects at a more economical cost. The choice depends on application requirements and exposure conditions.

Q: Where can BSPM Straight Through Valves be installed?

A: These valves are suitable for installation in hydraulic and pneumatic circuits found in industrial equipment, mobile machinery, and wherever direct fluid transfer is essential. Their compatibility with major brands and compliance with ISO/DIN standards ensures versatile usage across numerous setups.

Q: What is the process for connecting or disconnecting the valve?

A: The valve features male BSP threaded ends for easy integration. Connection is straightforward: align the threads, tighten to the specified torque (typically 30-100 Nm), and ensure secure fitting. Disconnection simply involves unscrewing, allowing quick maintenance or replacement without special tools.

Q: Is the valve compatible with systems from other manufacturers?

A: Yes, the BSPM Straight Through Valve's design offers interchangeability with most major brands, thanks to compliance with standard thread forms, dimensions, and sealing technologies. This ensures seamless integration and replacement in multi-brand systems.

Q: What factors influence the weight and size selection of the valve for my application?

A: Weight (approx. 150-600g) and size mainly depend on the required fluid flow, working pressure, and connection diameter. For optimal performance, select an inner diameter matching your line size (typically 1/4'' to 2''), ensuring compatibility with system specifications.
